Self-organising systems

Self-organization, understood as the spontaneous emergence of global order or coordination from local interactions, occurs in physical, biological, and social systems. Examples include morphogenesis, animal skin patterns, bird flocking, and social dynamics such as Schelling's segregation model, where simple local rules give rise to large-scale patterns.

These systems are highly sensitive to initial conditions, leading to stochastic outcomes. For instance, the formation of fingerprints or skin patterns varies between individuals due to small differences in early conditions. This variability poses challenges for inverse modelling, which requires a metric capable of recognising equivalence across different realisations of the same underlying process.

Inverse problems

Solving an inverse problem consists in determining the unknown parameters, or initial conditions, of a system from observations of its outcomes. Contrarily, forward problems unambiguously map inputs to outputs using the system model. Formally, solving an inverse problem requires finding $(\theta, s_0) \in \Theta \times S$ such that $F(\theta, s_0) = y_{\text{obs}}$, where $F: \Theta \times S \to Y$ denotes the forward model mapping parameters $\theta \in \Theta$ and initial states $s_0 \in S$ to observed data $y_{\text{obs}} \in Y$. Inverse problems are typically ill-posed, characterised by solution non-uniqueness and sensitivity. These properties link inverse problems to complex systems: small changes in their parameters or initial state can result in divergent outcomes. As such, recovering the causal parameters—i.e., solving the inverse problem—shares similar challenges to ill-posed inverse problems.

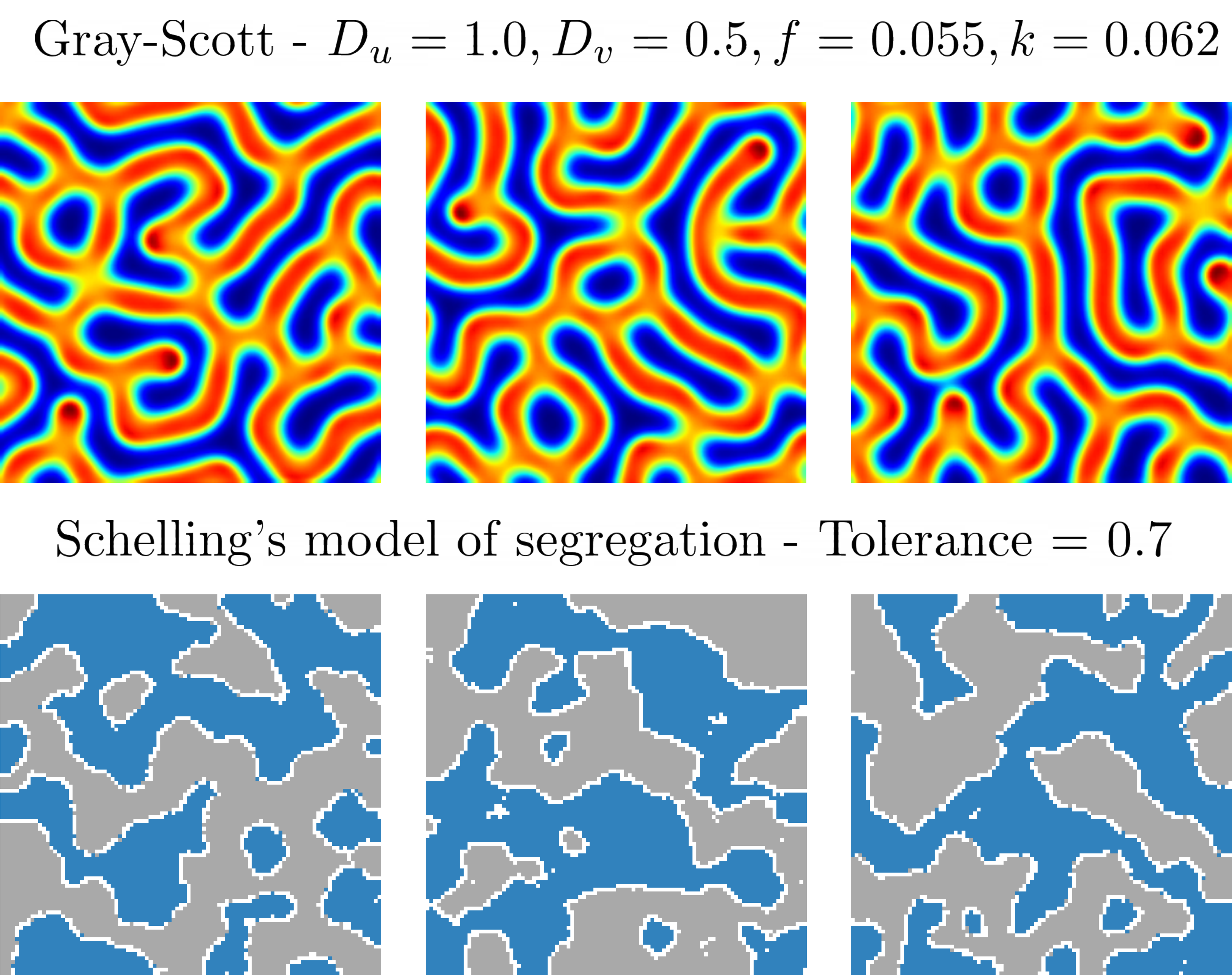

Stochasticity in self-organising systems. Top: Reaction-diffusion model, where stochasticity arises from varying initial conditions. Bottom: Schelling's model, where stochasticity is embedded in the model $F$ via asynchronous updates. Both how the a single model can result in stochasticity in the observable space.

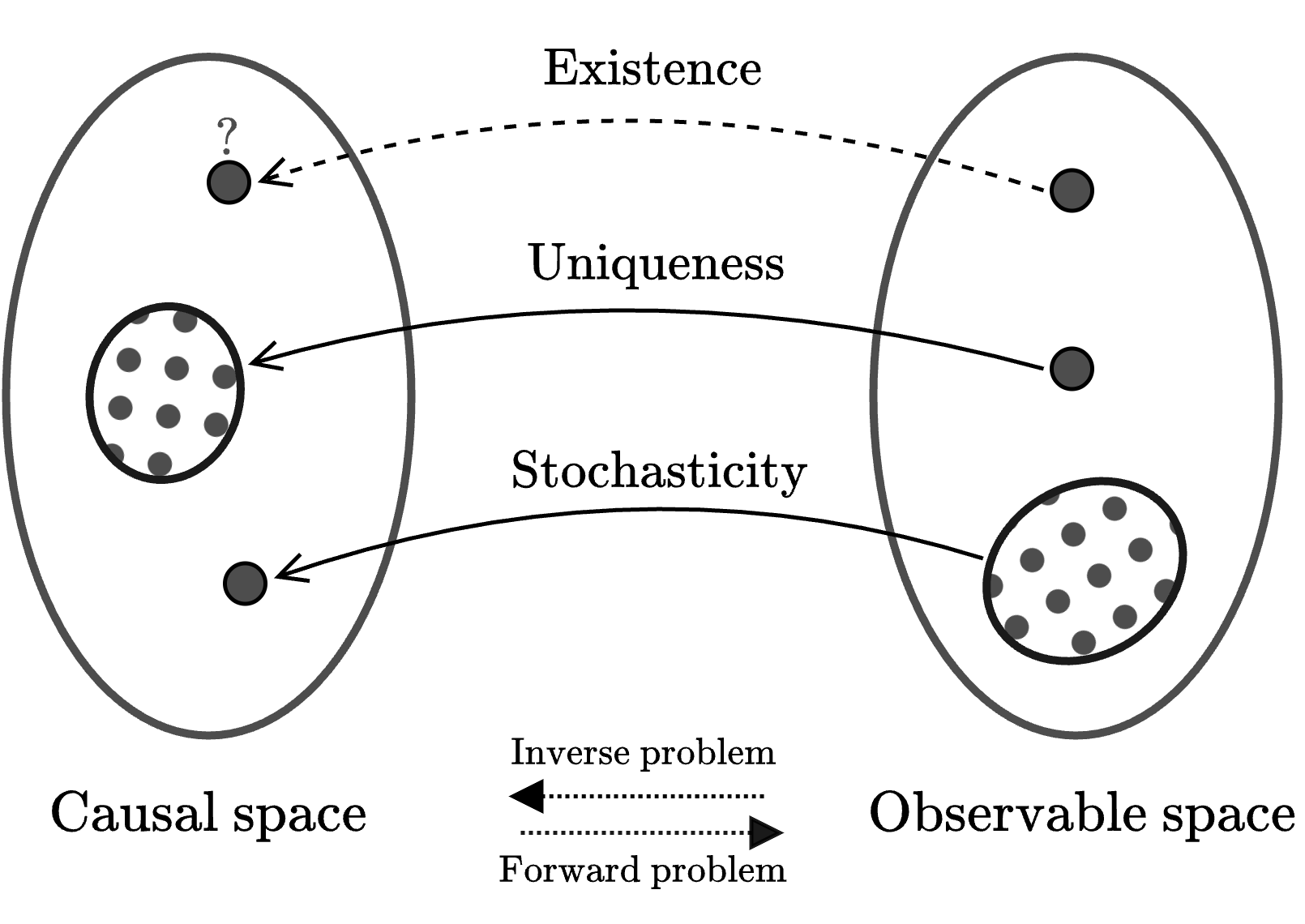

Stochasticity can be present in inverse problems in two distinct ways. Stochasticity in the causal space: multiple parameters or initial conditions $(\theta, s_0) \in \Theta \times S$ map to identical or nearly identical observations $y_{\text{obs}} \in Y$, resulting in degenerate solutions and non-uniqueness, i.e., non-injectivity of $F$. In this case, the unknown quantities in the causal space are distributions. An example is seismic tomography, which uses seismic waves recorded at the surface to reconstruct the Earth's interior. Solutions are non-unique: similar surface measurements can originate from different inner structures. Stochasticity in the observable space: in this case, observations are inherently stochastic. Either resulting from randomness in initial states, such as in reaction-diffusion systems ($y_{\text{obs}} = F(\theta, s_0)$ with $s_0 \sim \mathcal{S}$), or from intrinsic stochasticity in the forward model $F$, as in the asynchronous updates of an agent-based model.

The existing literature on inverse stochastic modelling exclusively focusses on the first case: how to address stochasticity in the causal space, where similar observations can have different causal origins. On the contrary, the method proposed in this work addresses the challenge of stochasticity in the observable space.

Embedding representations

Visual embeddings are vector representations that capture high-level image features such as shape, structure, and texture, going beyond raw pixel values. They embed similar images close together in a lower-dimensional space, providing a natural way to compare pattern similarity.

These embeddings are often invariant under transformations, making them suitable for comparing patterns with stochastic variations. This work uses the visual encoder of CLIP, a contrastively trained model that outputs 512-dimensional embeddings without requiring task-specific fine-tuning. This makes it effective for capturing visual similarity between generated and target patterns, as illustrated in the figure to the right.

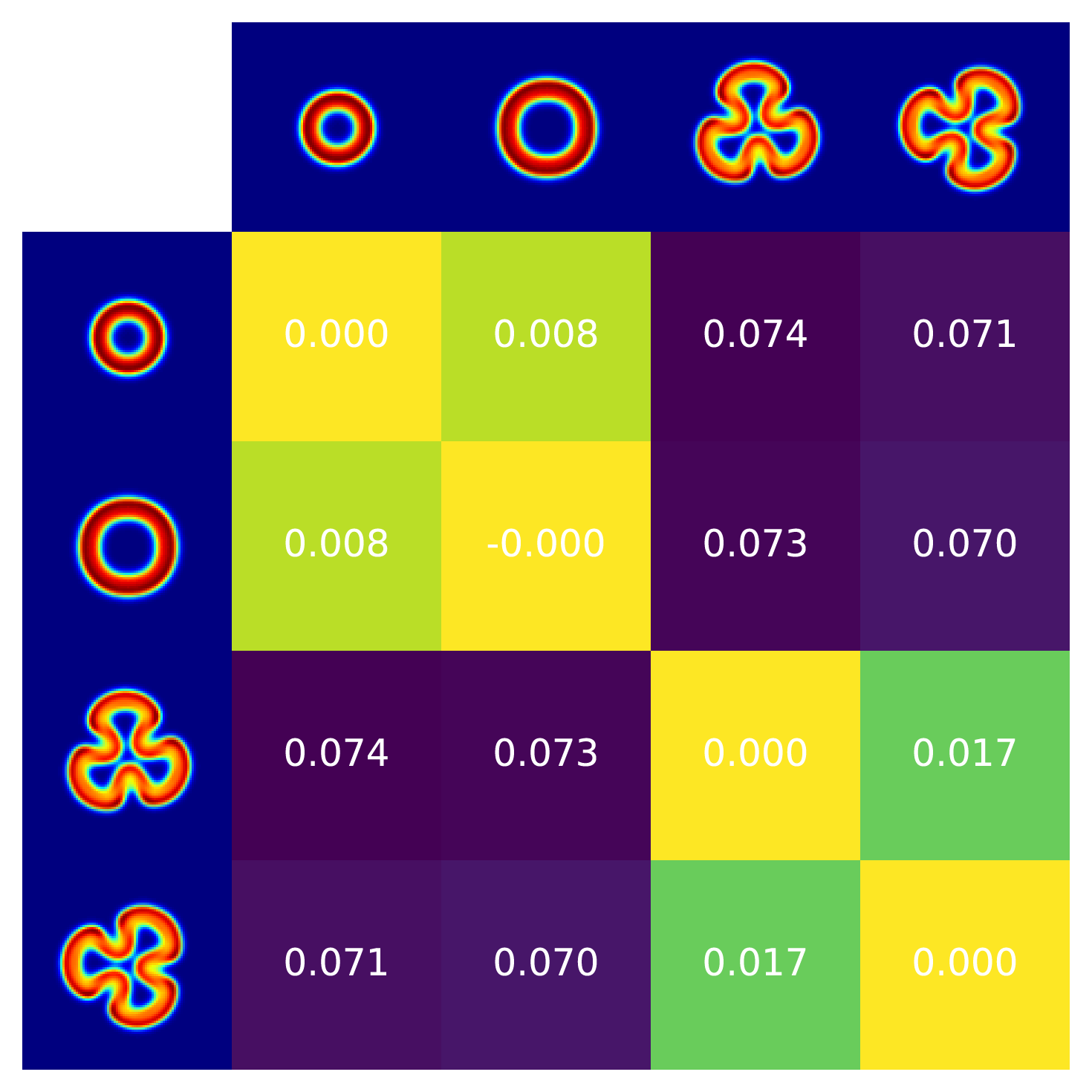

Examples of distance in embedding space between different patterns. Each of the patterns is an unique instantiation from two different classes. The embedding model maps patterns of the same class (with similar visual features) to similar embedding representations. Displayed values are pairwise cosine distances $1 - \cos(z_i, z_j)$

Using Invariant Representations to Solve Inverse Problems in Stochastic System

A common approach to solving inverse problems is to formulate them as optimisation problems by defining a loss function that measures the discrepancy between target data and predictions. However, pixel-based metrics are unable to meaningfully capture feature similarities between stochastic patterns, since they cannot account for the intrinsic variations often present in self-organising patterns. To solve inverse problems with stochasticity in the observable space, a metric capable of capturing the feature-level similarities rather than exact pixel-level matches is needed. Embedding representations offer an effective solution to this challenge by encoding features and invariances of the patterns. The idea behind our method is straightforward: map stochastic patterns onto an embedding space where perceptually similar patterns have similar vector representations. Then, use these invariant representations to solve the inverse problem of finding the unknown parameters that generate the stochastic patterns we seek to reconstruct. In the case of CLIP, the loss metric is cosine similarity. By focusing on high-level visual similarities rather than pixel-level matches, the method is robust to stochastic variations, and is able to solve inverse problems across entire families of patterns with shared visual features—without requiring handcrafted loss functions.

Reaction-Diffusion System

Let's first apply the method to Gray-Scott, a reaction-diffusion model used to study pattern formation in developmental systems. It describes how spatially distributed concentrations of two interacting substances—or morphogens—evolve over time. Morphogens play a critical role in developmental biology by guiding cell differentiation and tissue patterning through their concentration gradients. $u$ represents a nutrient or precursor substance, while $v$ acts as an autocatalyst that promotes its own production while consuming $u$. The interaction between $u$ and $v$, combined with their ability to diffuse through space, leads to the emergence of complex patterns such as spots, stripes, or labyrinths. Through this interplay, the Gray-Scott model provides insights into how local reactions and diffusion contribute to the self-organisation of biological structures. The model is formalised as two partial differential equations:

We apply our method to find the unknown parameters of the Gray-Scott reaction-diffusion model from different target patterns. The method successfully recovers parameters that generate patterns matching the targets, despite the stochastic nature of the system arising from random initial conditions. Each row in the figure below shows a different target pattern (leftmost column) followed by ten independent reconstructions using our method. The consistency of the reconstructions across different runs demonstrates the robustness of the method to stochasticity in the observable space.

The results show that our method can effectively handle a wide range of pattern types, from spots and stripes to more complex labyrinthine structures. This versatility is particularly important in the context of reaction-diffusion systems, where small changes in parameters can lead to qualitatively different patterns. The method's ability to consistently recover parameters that generate visually similar patterns, regardless of the specific initial conditions, suggests that it has successfully learned to focus on the essential features that characterize each pattern family.

Results for Gray-Scott model. Twelve target patterns (left column), each produced by simulating Gray-Scott model for different parameters $\theta_i$ and random initial states $s_{0i}$. The reconstructions columns show the patterns $y_i^n$ recovered by our method for 10 independent training runs.

Schelling's Model of Segregation

The second system we use to demonstrate the method is Schelling's segregation model, a classic computational model used to study the emergence of spatial patterns in social systems. It illustrates how individual preferences for neighbourhood composition can lead to large-scale segregation, even with mild preferences. This model has been highly influential in computational social science, specifically contributing to the understanding of residential segregation and its implications for urban planning and social dynamics. Schelling's model has a historical significance in computational social science, as it was one of the first to demonstrate how simple local rules can produce complex emergent behaviours, showing the potential of agent-based models to investigate social systems. It is for this latter reason that we chose to demonstrate our method with it.

Our implementation consists of two classes of agents, distributed on a spatial grid. Each agent evaluates its satisfaction based on the proportion of similar neighbours in its local neighbourhood. Unsatisfied agents with their current location will asynchronously relocate to a random location to improve their satisfaction. Schelling's model leads to the emergence of complex segregation patterns that match those observed in urban environments.

In this experiment, we applied the described method to find the tolerance $T$ from different Schelling segregation patterns. We use a grid size of 100 by 100, and an occupation density of 90%. The results of the experiment are shown in the figure below.

Results for Schelling's segregation model. Eight target patterns (left column), each produced by simulating Schelling's model for different parameters $\theta$ and random initial states $s_{0i}$. The reconstructions columns show the patterns $y_i^n$ recovered by our method for 10 independent training runs.

Conclusion

We have presented here a method for solving inverse problems in stochastic self-organising systems by leveraging invariant visual representations from embedding models—without the need to handcraft metric functions to capture the visual similarities between patterns. The key idea is to shift the optimisation from pixel space to an embedding space where perceptually similar patterns are mapped to nearby points, allowing the recovery of unknown parameters, even those resulting in stochastic patterns. Unlike existing techniques in inverse modelling, the method addresses the issue of stochasticity in the observable space, rather than in the causal space. The method provides a simple yet effective technique for theorists and experimentalists to investigate and control self-organising stochastic systems.

Citation

@article{Najarro2025Jun,
    title = {{Solving Inverse Problems in Stochastic Self-Organising Systems through Invariant Representations}},
    author = {Najarro, Elias and Bessone, Nicolas and Risi, Sebastian},
    journal = {arXiv},
    year = {2025},
    month = jun,
    eprint = {2506.11796},
    doi = {10.48550/arXiv.2506.11796}
}
